OpenVDB models

Intact.Simulation for Grasshopper allows direct simulation of implicit geometries through VDB models created with OpenVDB.



Use the Read Volume block to read a VDB volume from a file.


The VDB volume must be stored as a FloatGrid. The VDB volume can be used directly as a geometry input to a Component block for simulation.

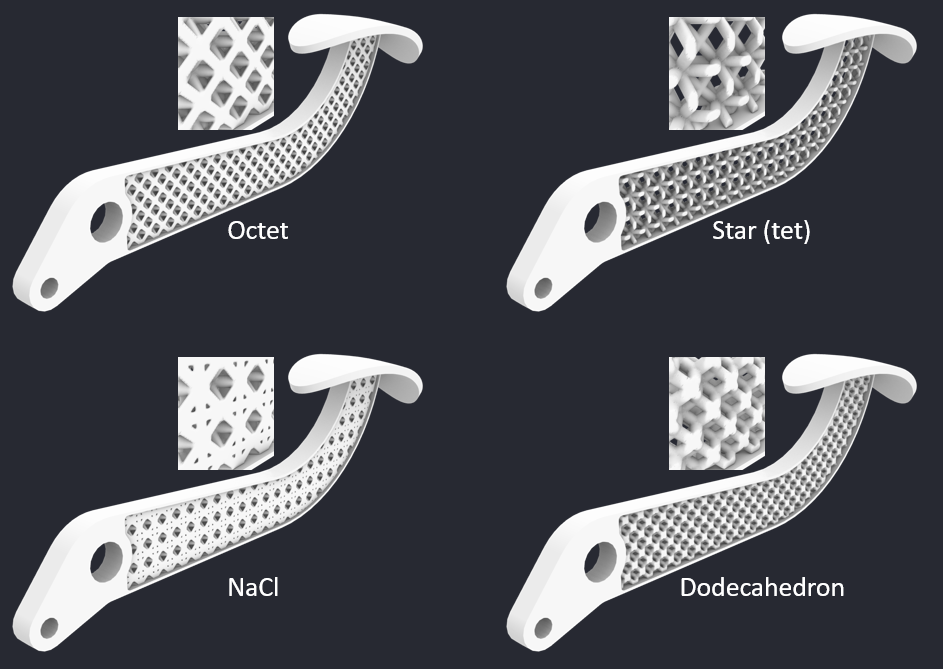

📌 See example application Ex-5: Using VDB implicits for lattice infill

Units

The easiest way to associate units with an OpenVDB model is to set the Rhino document units to the desired length units.
