Static Scenario: Multi-Load Cantilever

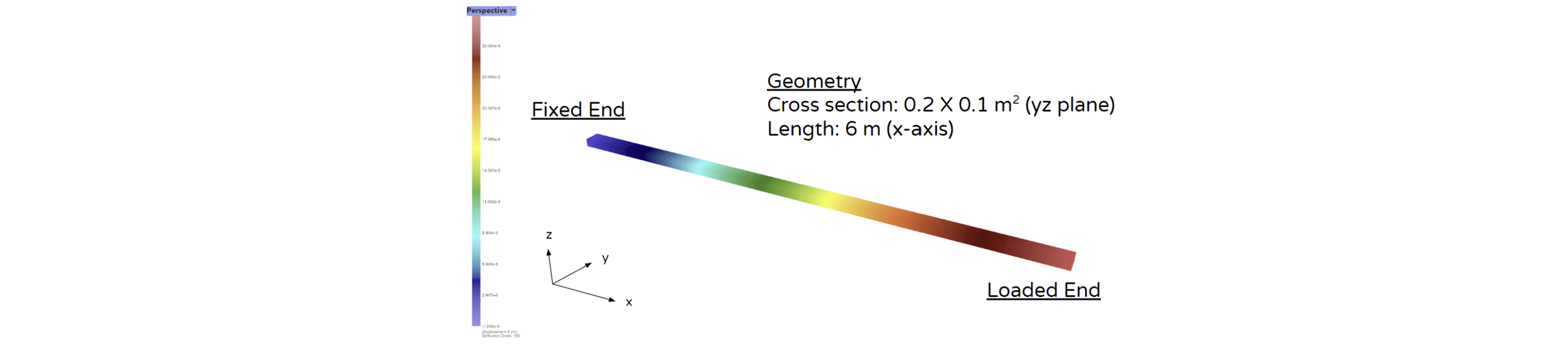

Geometry & Materials Setup

The geometry and grasshopper files for this example are available for download


Materials:

  • Isotropic

  • Young’s Modulus: 10 MPa

  • Poisson’s Ratio: 0.3

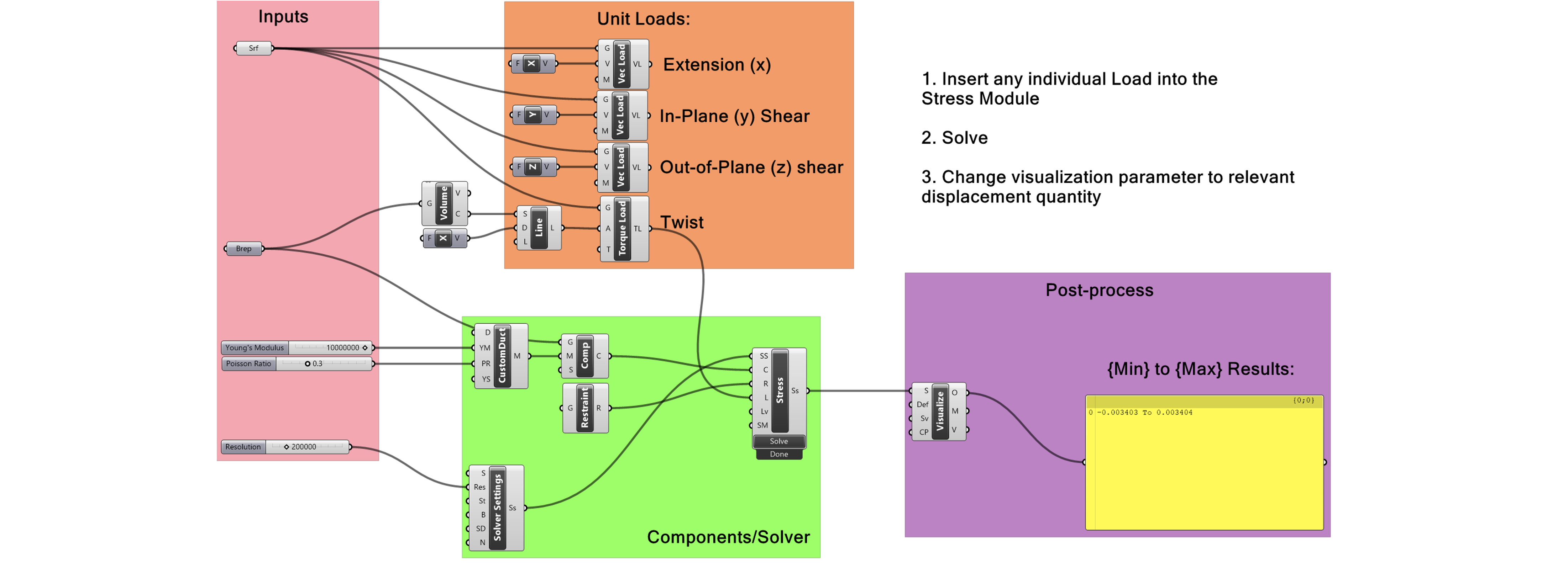

Grasshopper File

Note, you have to manually input each load case individually into the solver. Each load is already present in the grasshopper file, so, if for example, you wanted to test extension in the x-direction you would connect the corresponding load to the solver block, re-solve, and change the visualization menu to x-direction displacement.

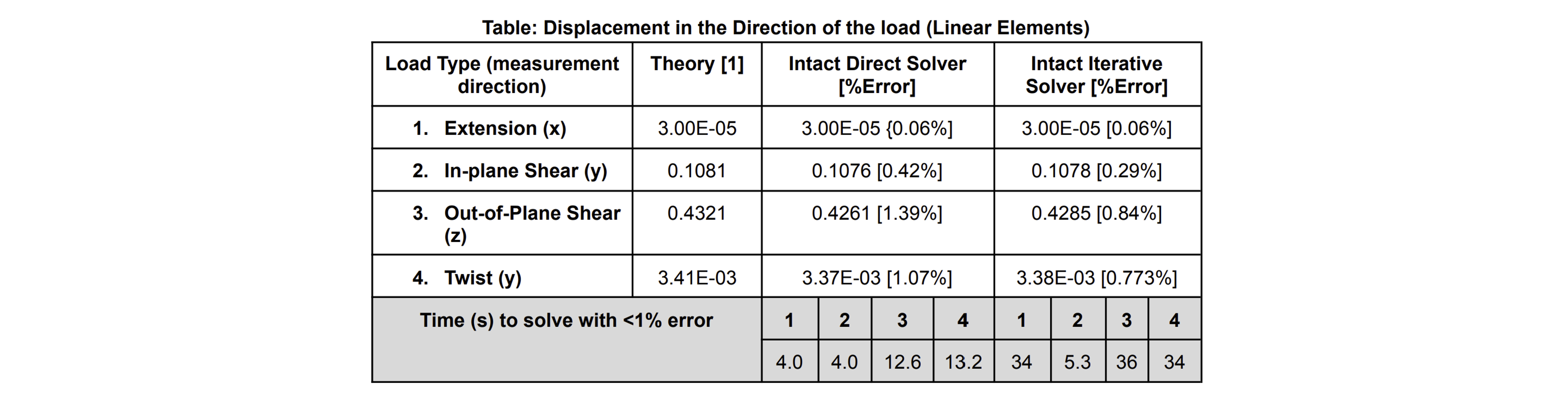

Reference Results
