Static Scenario: Plate with Hole (Stress Concentration)

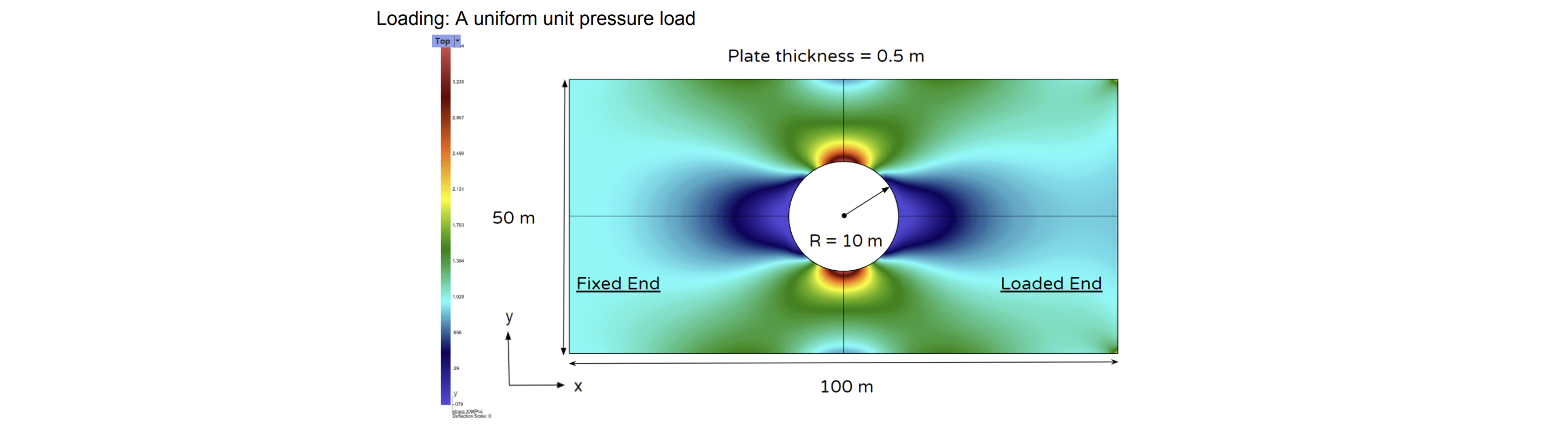

Geometry & Materials Setup

The geometry and grasshopper files for this example are available for download


Materials:

  • Isotropic (stress independent of material otherwise)

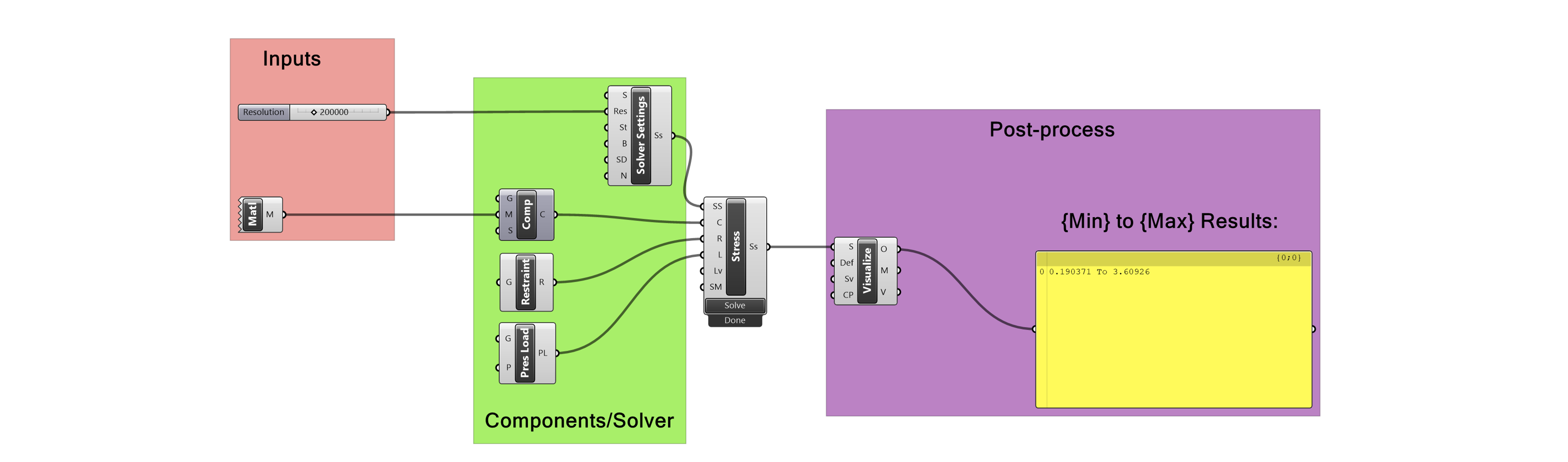

Grasshopper File


Reference Results

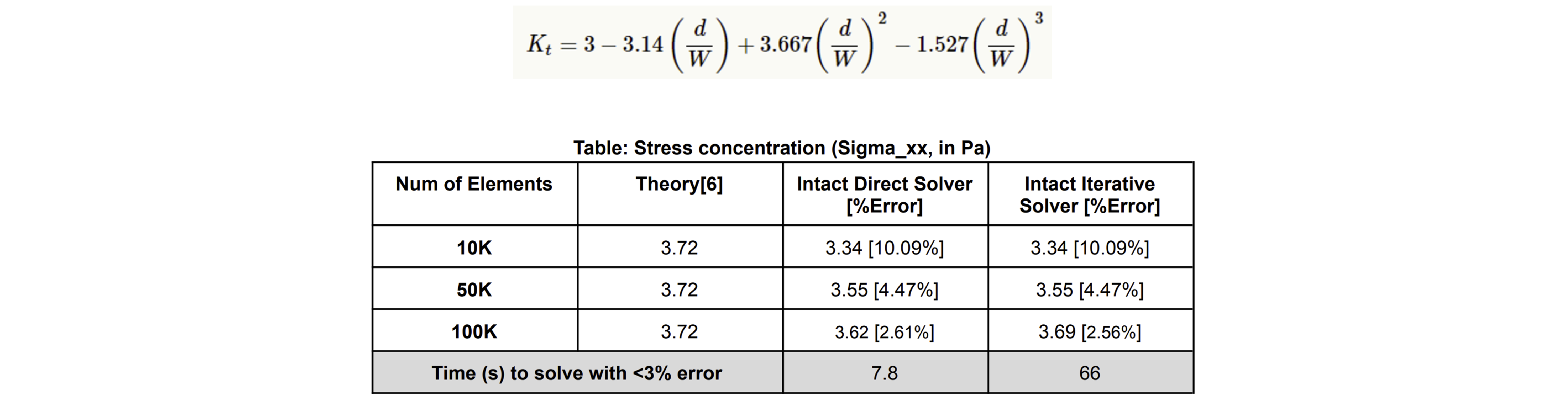

(stress concentration factor equation) plate_w_hole_table.png
